- 天線規格
External 5 dBi antenna x 2
*Antenna type will differ according to local regulations and requirement in each country
- 運作頻率
2.4~2.5GHz
- Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support
- Firewall & Access Control
Firewall: NAT and SPI (Stateful Packet Inspection)
Filtering: Port, IP packet, URL Keyword, MAC address
- 管理程式
DHCP, System Event Log
- WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
- Utilities
Device Discovery
Firware Restore
Setup Utility
- Ports
1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN
- Button
WPS Button, Reset Button, Power Button
- LED Indicator
PWR x 1
LAN x 4
WAN x 1
- 電源控制器
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current
- 作業系統支援
Windows 7 32bit/64bit
Windows® 8 32bit/64bit
Windows Vista
Windows XP 32bit/64bit
Mac OS X 10.4 or higher
Mac OS X 10.x or higher
Mac OS X 10.6
Mac OS X 10.7
Linux
- Environmental
Operating Temperature: 0 °C to 45 °C ( °F to ºF)
Storage Temperature: -20 ° to 70 ° C ( °F to °F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 5 % to 90 % (Non-condensing)
- 規格
168 x 124 x 30 mm (長x寬x高)
- 重量
210 g
- 包裝內容

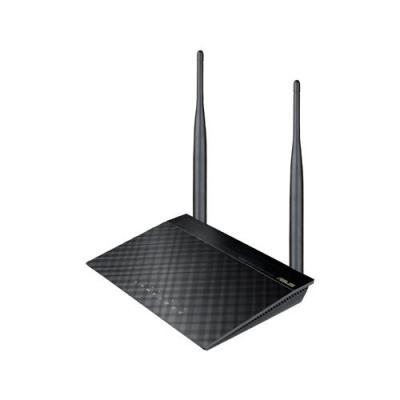

RT-N12E Wireless Router
RJ-45 Cable
Power Adapter
Warranty Card
Quick Start Guide
Support CD (User Manual and Utility Software)
