- 網路標準
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
- Product Segment
AC2400 ultimate AC performance: 600+1734Mbps
- 傳輸速率
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 450Mbps
802.11n TurboQAM:up to600Mbps
802.11ac: up to 1734Mbps
- 天線規格
External antenna x 4
- 運作頻率
2.4GHz/5GHz
- Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support
- Firewall & Access Control
防火牆: SPI 入侵偵測、DoS 防護存取控制: 監護人控制、網路服務篩選器、URL 篩選器、連接埠篩選器
- 管理程式
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Universal Repeater, System Event Log
- VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
- WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Dual Link support
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support
- Utilities
•Download Master
- 支援 BT、NZB、HTTP、ED2K
- 支援加密法、DHT、PEX 及磁性連結
- 上傳 / 下載頻寬控制
- 下載排程
•媒體伺服器:
- 影像: JPEG
- 音訊: mp3、wma、wav、pcm、mp4、lpcm、ogg
- 視訊: asf、avi、divx、mpeg、mpg、ts、vob、wmv、mkv、mov
•QoS:
- WMM
- 使用者定義 IP / MAC / 連接埠規則。 上傳與下載頻寬管理。
- ACK/SYN/FIN/RST/ICMP 最高優先權
•訪客網路 2.4GHz 訪客網路 x 3.5GHz 訪客網路 x 3
•印表機伺服器: 多功能印表機支援(僅限 Windows)、LPR 通訊協定支援
•檔案伺服器: Samba 和 FTP 伺服器,具帳戶管理功能
•PPTP VPN 伺服器
•網路對應
•流量監控
- Ports
4 x RJ45 for 10/100/1000/ BaseT for LAN, 1 x RJ45 for 10/100/1000/ BaseT for WAN
USB 2.0 x 1
USB 3.0 x 1
- Button
WPS Button, Reset Button, Power Switch, Wireless on/off Button, LED on/off Button
- LED Indicator
PWR x 1
AIR x 2
LAN x 4
WAN x 1
WPS x 1
- 電源控制器
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current
- 作業系統支援
Windows® 8.1
Windows® 8
Windows 7
Windows Vista
Windows 2000
Windows ME
Windows XP
Mac OS X 10.4 or higher
Mac OS X 10.1 or higher
Windows® Server 2003
Mac OS X 10.x or higher
Windows® Server 2008
Linux Kernel (Support Ubuntu only)
Mac OS X
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux
- 規格
289.5 x 167.6 x 47.5 mm (WxDxH)
- 重量
747 g
- 包裝內容

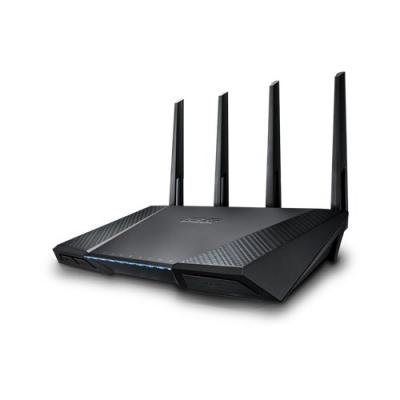

1 x RT-AC87U 雙頻 Wireless-AC2400 Gigabit 分享器
1 x RJ-45 連接線
1 x 電源變壓器
1 x QSG
1 x 支援光碟(使用手冊和公用程式)
- Router Special Features
3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
- Operation mode
Wireless router mode
Access point mode
Media bridge mode
